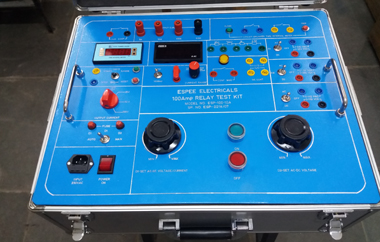

1 Phase Relay Testing Kit Model- ESPRTK 100A

We also offer 100 Amps Single Phase Relay Test Kit. It generate AC and DC Voltage, variable current sources 10mA to 100 Amps AC. Two separate dimmer for voltage & current mode. Relay Test Kit is made up on M S Powder coated cabinet & fix it in travel bag for easy to carry any where.

Technical Specification :

1	Operating Voltage	230 V AC 50 Hz
2	OUTPUT D1 SET CURRENT D1 SET VOLTAGE D2 SET VOLTAGE	0 to 10V/100A , 0 to 100V / 10A, 0 to 10V / 5A 0 to 250V AC 0 to 300V DC 110V AC FIXED 0 to 250V AC 0 to 300V DC 110V DC FIXED 230V AC FIXED

FEATURES :

• Timer range sec 9.999, 99.99, 999.9, 9999 sec
• Timer range reset make brake facility.
• Timer sensing external No/NC contact.
• Single pole time interval meter close & trip timing.
• External current meter calibration facility.
• Register Burden 25 Ω, 100 Ω, 1K Ω , 2.5K Ω/50 watts.
• Potential free No/NC Contact 6 Amp.
• Continuity tester indicator with buzzer.
• Make and brake switch provided.
• ON/OFF push button with indicator.
• AC/DC voltage selector switch.

PROTECTION

• Glass fuse provided for over voltage & short circuit protection

ASSESSORIES

• Input Supply Cord.
• Voltage probe.
• Current probe.
• Sensing probe.
• Operating manual.

DIMENSION

• W 450 X D 300 X H 175mm

WEIGHT

• 30 Kgs. Approx.
